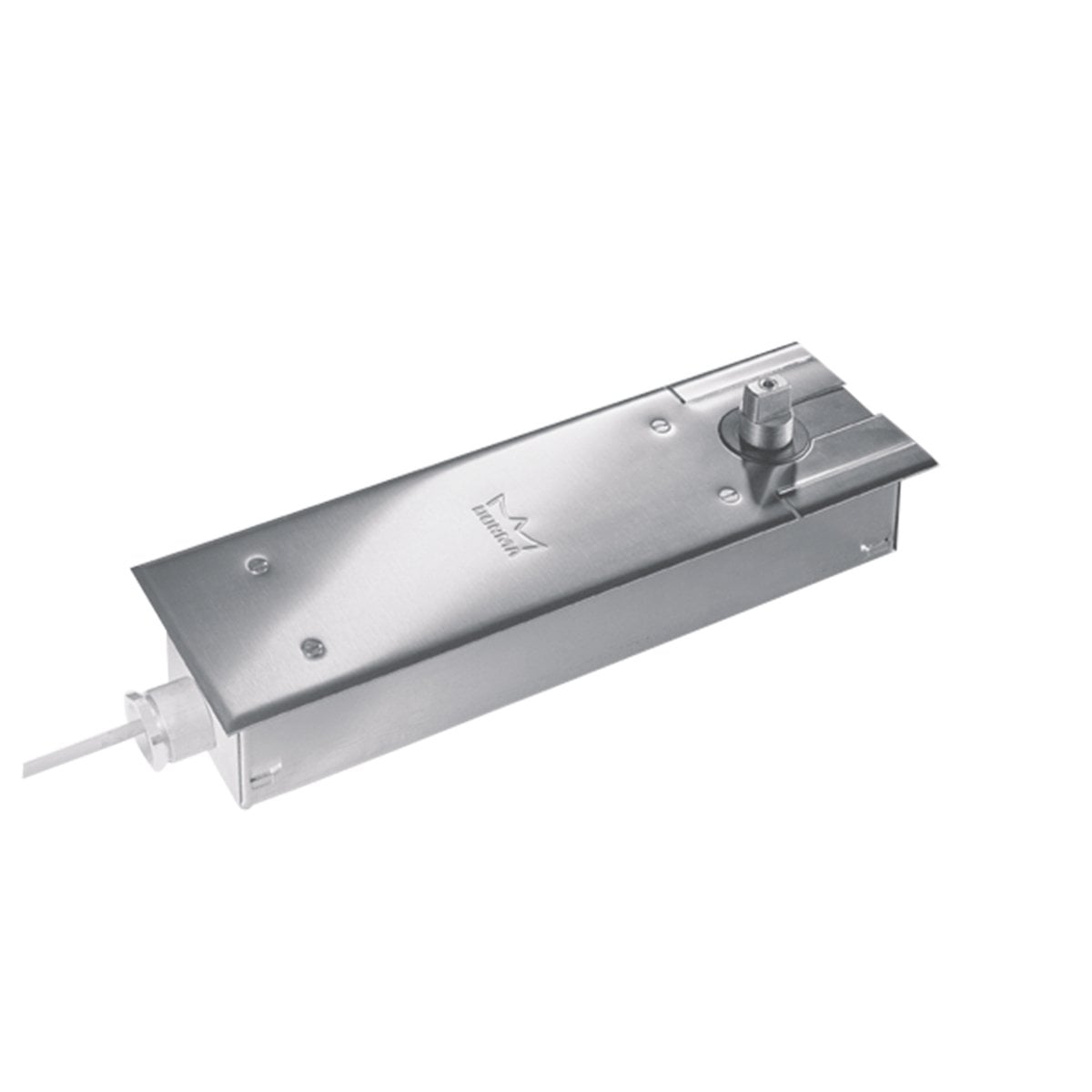

Dorma BTS80EMB Electromagnetic Hold Open Floor Spring - Without Spindle

Electro-magnetic hold-open unit.
For installation on internal doors up to 1100 / 1250 / 1400mm with 175 degree opening.
Max door weight 300KG.
Fixed BackCheck.
Non-handed not for use on single action doors.
Complete with cement box and without spindle.
With connecting cable, without plastic conduit, operating voltage 24 V DC.
CE marked and independently tested to EN1155.
CERTIFIRE approved (Cert. No. CF127) ITT 60 MM/IMM 240.

The BTS80 EMB is an ideal solution in applications where surface applied life safety products cannot be installed or are objectionable due to aesthetics.

Successfully third party tested to BS EN1155

CE Marked

CERTIFIRE Approved CF127

• Concealed installation
• Multipoint hold open
• Mechanical backcheck
• Suitable for Single and Double Action Doors

Electromagnetic hydraulic hold open feature

The BTS80 EMB Series of floor-concealed door closers provide an electromagnetic hydraulic hold open feature, allowing doors to self-close upon the interruption of electrical current. Once the alarm has been activated or a on a power failure, the BTS 80EMB will close the doors and then perform as a standard floorspring, until the alarm is reset or power restored. The BTS80 EMB includes a selective type hold open with a range of approximately 65° to 175°.

Designed for fire/life safety applications

The BTS80 EMB is specifically designed to be used in fire/life safety applications where the hold open is electrically controlled by a fire alarm contact. The closer is typically placed into the hold open position until a fire alarm condition.
