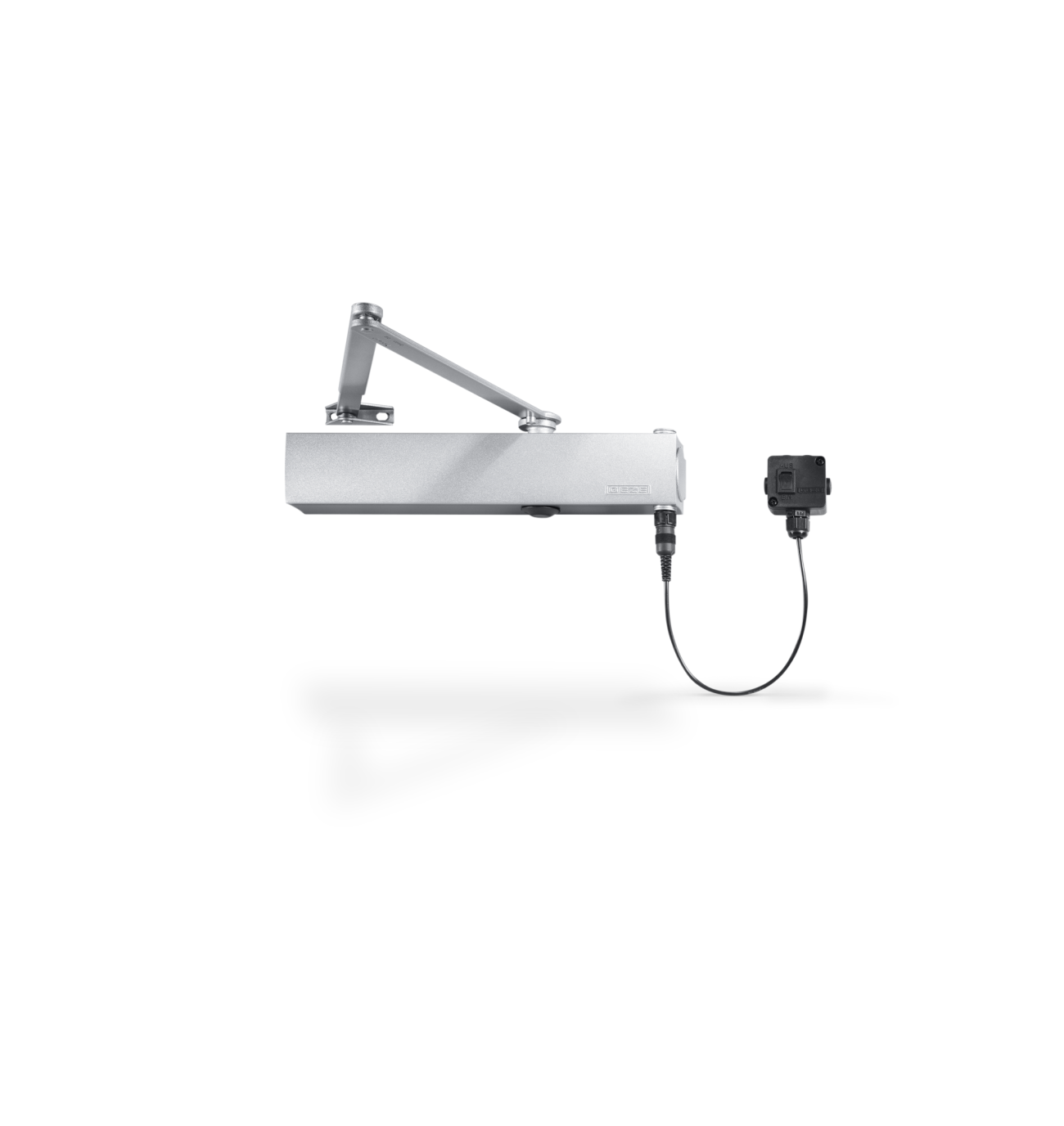

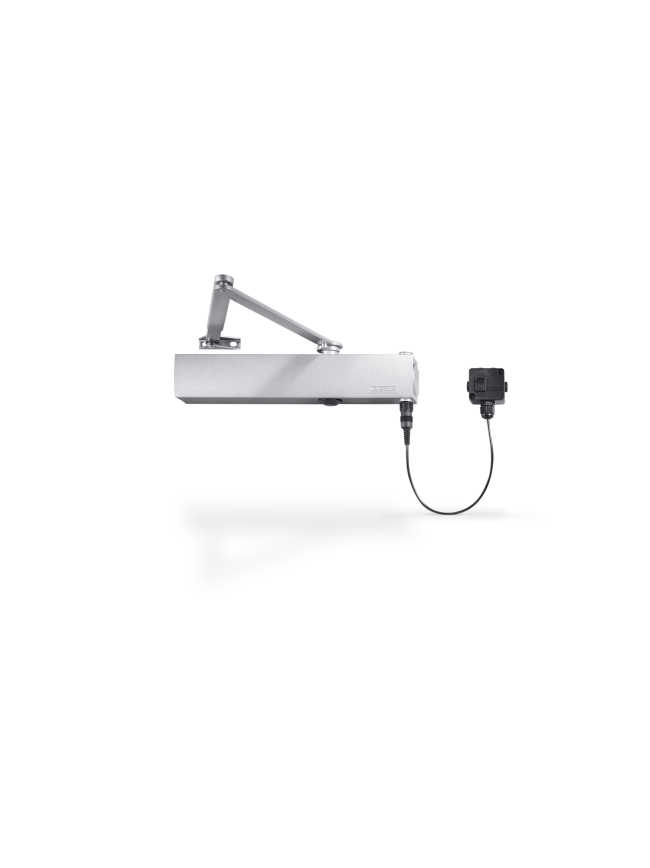

GEZE TS 4000 E Electromagnetic Fire Door Closer - Power Size EN 1-6 - Silver
Item Code: 124796
Overhead door closer with electric hold-open device, designed for single-leaf doors up to 1400mm — ideal for fire and smoke protection doors.
- Suitable for fire and smoke protection doors (EN 1154 / EN 1155)
- Electric hold-open, adjustable across 80°–175°
- Fits right and left hand doors, no conversion needed
- Closing speed and force fully adjustable, with visual closing force display
- Low power consumption, 24V DC operation
£179.70(Inc. VAT)£149.75(Ex. VAT)
Order
Total Price:£179.70£149.75
Quantity
Add to cart
Free delivery on all orders over £100.00
14-day Money Back Guarantee
Excellent Customer Support
- Overview
- Documentation
TS 4000 E Overhead door closer with link arm for single leaf doors of up to 1400 mm leaf width with electric hold-open device.
Application Areas
Technical Specification
Documentation- Operating voltage 24 V DC
- Can be used for right and left hand doors without conversion
- Electric hold-open device with hold-open area 80°-175°
- Electric hold-open device in accordance with EN 1155, suitable for hold-open systems
- Mechanical latching action which accelerates the door shortly before the closed position
- Closing speed can be individually adjusted
- Visual closing force display for easy control of the setting
- All functions can be set from the front (except for latching action)
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- Door leaf installation hinge side, or transom installation opposite hinge side
- Closing force in accordance with EN 1154, EN 1–6
- Barrier-free in accordance with DIN 18040 up to leaf width (max.) 1400mm
Technical Specification
| Attribute | Detail |
|---|---|
| Leaf width (max.) | 1400 mm |
| Type of installation | Door leaf installation hinge side, transom installation opposite hinge side |
| Opening angle (max.) | 180° |
| Input voltage | 24 V DC |
| Suitability for fire protection doors | Yes |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via link arm |
| Position of closing force adjustment | Front |
| Visual closing force display | Yes |
| Hold-open range | 80° – 175° |
