Pocket Door Kits - single door made for 38x89mm stud walls - By Frelan Hardware - JVPDK

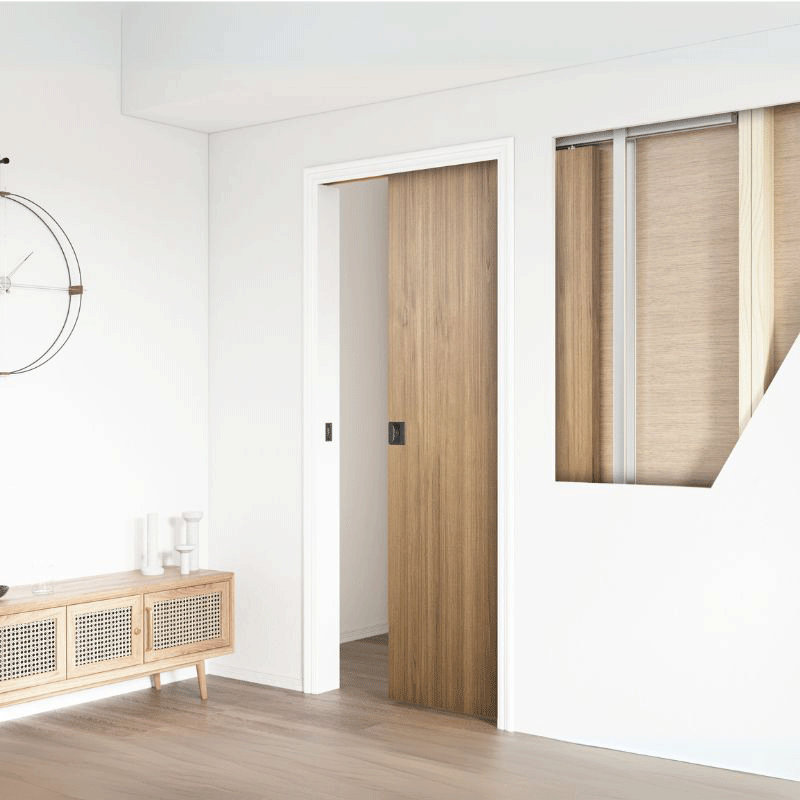

Everything you need to fit one sliding pocket door -- the door glides into a concealed wall cavity, freeing the floor space a hinged door wastes.

What's in the box

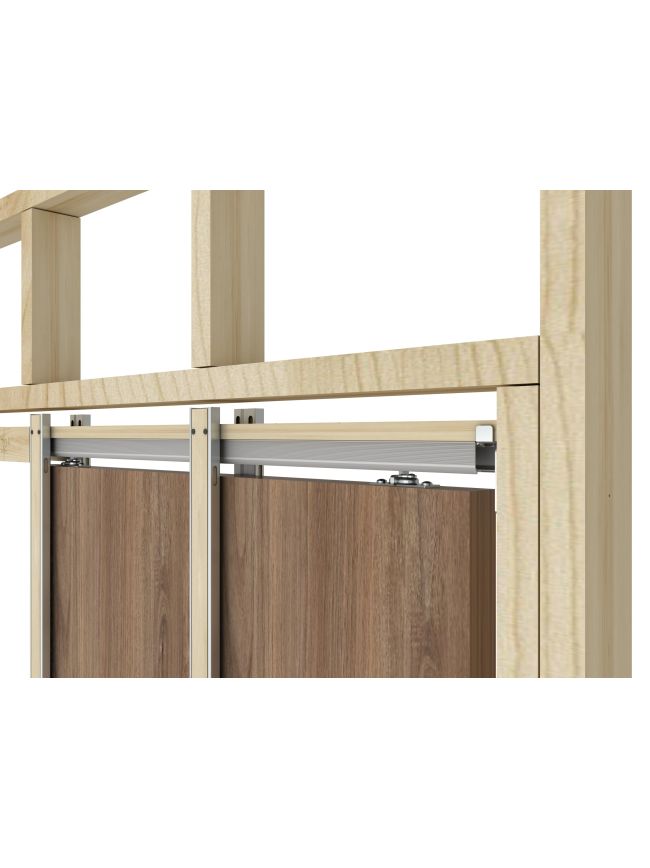

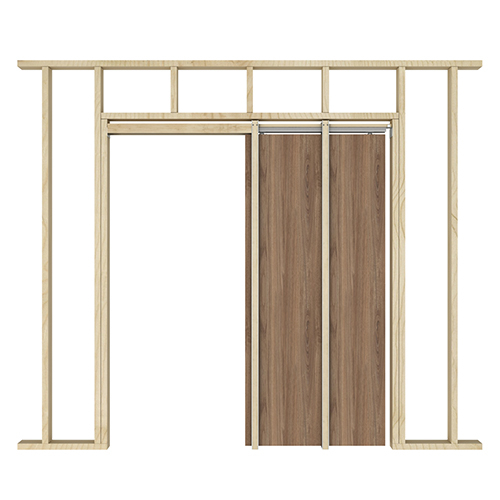

• 1 × pocket door cavity frame system


• Soft close / soft open mechanism (fitted as standard)


• Track, hangers & fixings

Key features

• Adjustable on site -- suits doors up to 2040mm (H) × 860mm (W) × 44mm (T)


• Soft close and soft open as standard -- no bangs or slams


• Tested to 100,000 working cycles and rated for doors up to 100kg


• Takes 30-45mm thick doors -- 35mm doors with raised beading or mouldings are fine so long as overall thickness stays within 45mm


• 5-year guarantee against manufacturing defects

Specification

• Stud work: designed for 4 × 2 (89mm) stud and 12.5mm plasterboard


• Finished wall thickness: 114mm


• Internal cavity: 57mm -- suits 30-45mm doors


• Max door size: 2040 × 860 × 44mm


• Max door weight: 100kg


• Cycle tested: 100,000 cycles


• Material: anodised aluminium frame with timber liners


• Use: internal -- residential & commercial


• Guarantee: 5 years (manufacturing defects)

Please note: finishing jambs and brushes are not included -- jambs are made up by the fitter on site. Not suitable for fire-rated door installations. Door sold separately.
