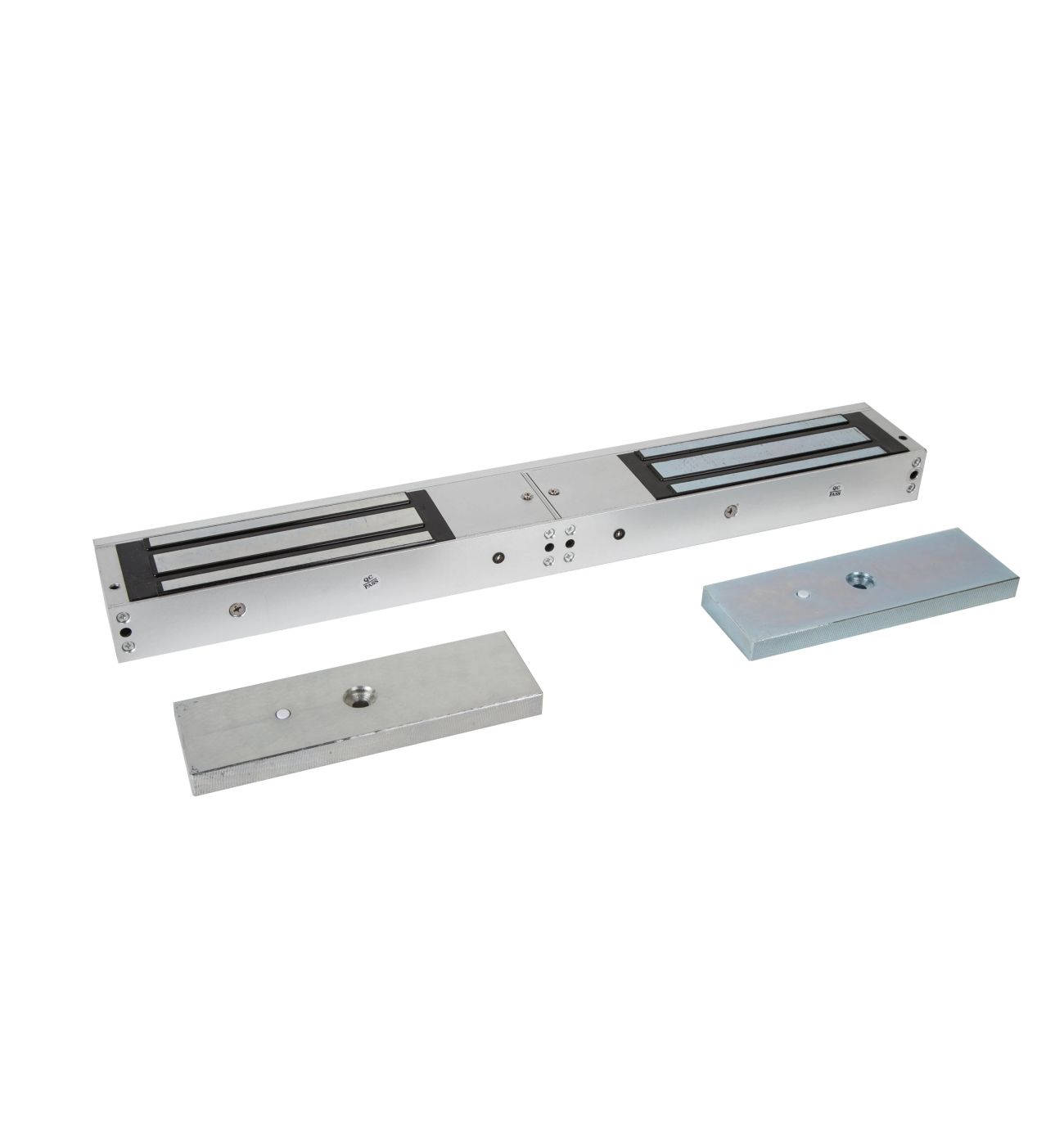

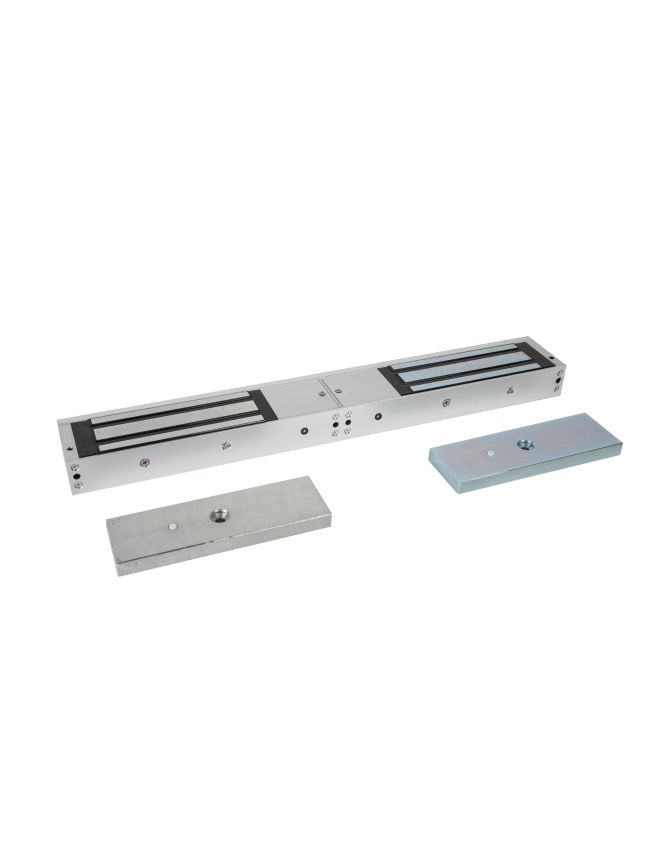

Zoo Hardware Standard Double Monitored Magnetic Lock 1200lbs (545kgs x2) Holding Force
Item Code: ML1200-D-M
- Dimensions: 530 x 73 x 40mm
- Dimensions: 185 x 60 x 15mm (Armature x 2)
- Successfully Fire tested to BS EN1634-1-2014 & BS476: Part 22: 1987 (30, 60, 90 & 120 minute timber door-sets)
£186.06(Inc. VAT)£155.05(Ex. VAT)
Order
Total Price:£186.06£155.05
Quantity
Add to cart
Free delivery on all orders over £100.00
14-day Money Back Guarantee
Excellent Customer Support
- Overview
- Documentation
Standard Double Monitored Magnetic Lock 1200lbs (545kgs x2) Holding Force from Zoo Hardware.
Key Features
- Dimensions: 530 x 73 x 40mm
- Dimensions: 185 x 60 x 15mm (Armature x 2)
- Successfully Fire tested to BS EN1634-1-2014 & BS476: Part 22: 1987 (30, 60, 90 & 120 minute timber door-sets)
- Status LED Indication on ML1200-D-M (Red to Green)
- Aluminium housing
- 12/24 VDC @ 600/300mA x 2
- 545kgs holding force x 2
- Built in surge protection
- Fail safe operation (power to lock)
- Push off release pin on armature
- Monitored
- Voltage free relay contacts
- 530 x73 x40 (mm)
- 8.54kg Bo xed
- Instruc tions
